Description
build night vision goggles Nocturn Industries Manticore Polymer Binocular NVG Housing Build Kit – Cold Harbour SupplyThe Manticore from Nocturn Industries is a rugged, articulating binocular housing made of high strength injection molded fiber reinforced polymers with on board digital controls that control power, gain, and an on board IR illuminator. This binocular device is functionally identical to the Manticore R and features individual pod shutoff when each pod is rolled up, IPD stops, user adjustable pod tension, IR illuminator & indicator, and low battery

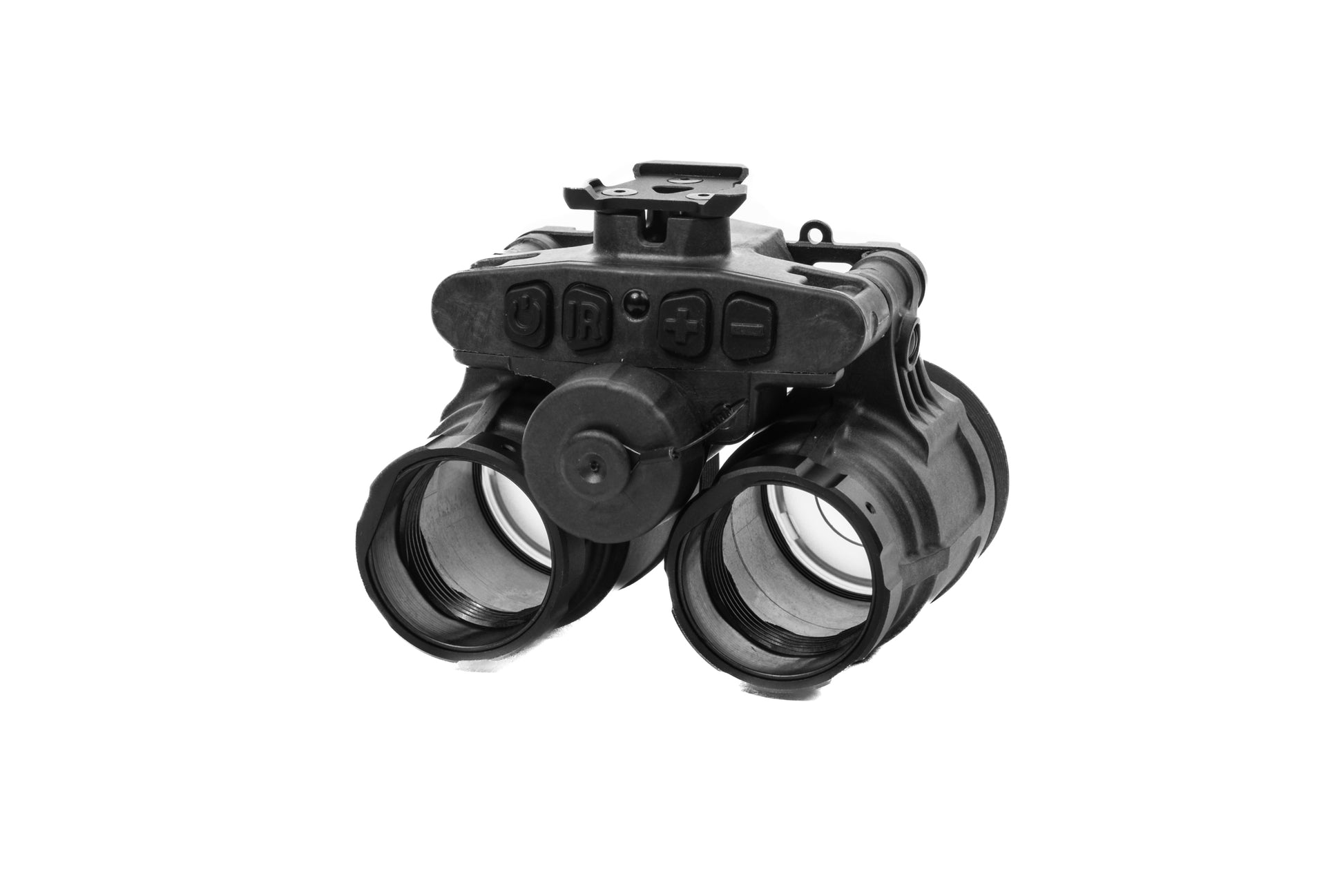

The Manticore from Nocturn Industries is a rugged, articulating binocular housing made of high-strength injection molded fiber-reinforced polymers with on-board digital controls that control power, gain, and an on-board IR illuminator. This binocular device is functionally identical to the Manticore-R and features individual pod shutoff when each pod is rolled up, IPD stops, user-adjustable pod tension, IR-illuminator & indicator, and low battery indicator. The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours and does not require offboard battery packs. State-of-the-art modelling allows an extremely strong housing with a low weight - only 561g fully-loaded with Milspec PVS-14 optics.
Key Features:
- Individual pod auto-off when swiveled
- Push-button on/off, IR illuminator and gain (brightness) control
- Tool-less Inter-Pupillary Distance adjustment
- Exceeds MIL-STD-810G and NATO 1.5m drop test standards
- Dust-proof and water-proof to 1.5m
- Built-in dovetail mount
- Fully assembled with US Mil-spec lenses from Noctis Technologies (formerly Carson Industries)
- Housing assembled in the USA; complete device assembled in Canada.
- LIFETIME WARRANTY on the housing
The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.
Lens Options
Here at Cold Harbour Supply, we are happy to offer some of the widest ranges of lenses available to our customers based on their specific operational needs.
See our lens guide here to learn more.
Noctis (Formerly Carson) Milspec Lens Set
- US Milspec lens meeting MIL-PRF-A3256342A tests
- Excellent light transmission, leading flare suppression and resolution rendering
- Flat low distortion image
- Diopter markings for easy diopter settings
Photonis Defense Boomslang 50° Wide FOV
- 25% increase of FOV
- 10% increase in light transmission over milspec lenses
- Above MILSPEC IP68/MILSTD 810 immersion tested
- Lighter than milspec optics
NVD-N Eyepiece + RPO 3.0 Objective Combo
- All of the benefits of the legacy RPO 3.0 lens system but with a widened eyepiece with eye relief and eyebox similar to Noctis Milspec lenses
- Paired with RPO 3.0 objective as recommended by RPO, with superior light transmission, excellent centre resolution
- Ultralight - Up to 30% weight savings on any NVG
| Specifications | |
| Material | Fiber-reinforced injection molded polymer |
| Tube Type | 3 contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain |
| Weight |
561g with standard milspec optics and a battery |
| Power Supply | CR123 onboard power, optional 00 LEMO port |
| Runtime | 25 hours |
| Field of View | 40º |
| Individual Pod Power Off | Yes when rotate to side |
| Diopter | Adjustable +2 to -6 |
| Submersion and Dust Rating | Exceeds IP68 (dust and waterproof up to 1.5m) |
| Impact Rating | MIL-STD-810H |
| Mount Style | Built in dovetail mount |
| Onboard IR Illuminator | Yes |
Nocturn Industries Warranty: Lifetime repair of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
